Project 1 - Modelling An Architectural Design
Students get to choose their desired architecture and produce it in a 3D form. The first project introduces us to architecture softwares such as Autocad, 3D Max and Rhinoceros and use them to complete these series of projects.
We first learned 3D Max to produce a house
We learned the basic usage of Rhinoceros by drawing a simple house
The house created was rendered in 3D Max as it has better rendering outcomes
I started the project by producing the floor plan of the retreat house by using Autocad
Extruding the walls using rhino

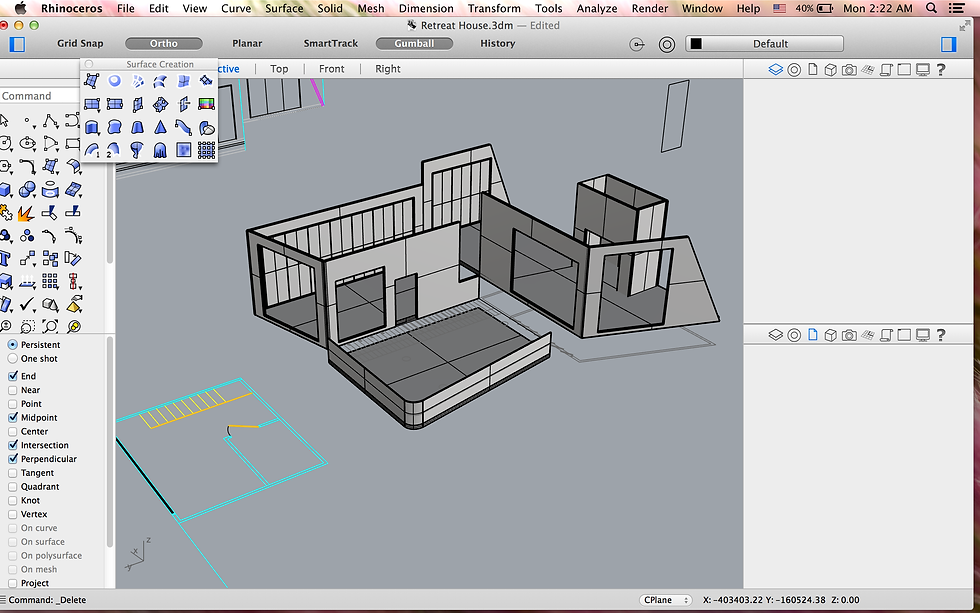

Making openings for doors and windows
Inserting fixed windows into the wall
Inserting hollow bricks
Inserted louvers and hollow blocks
Completed roof

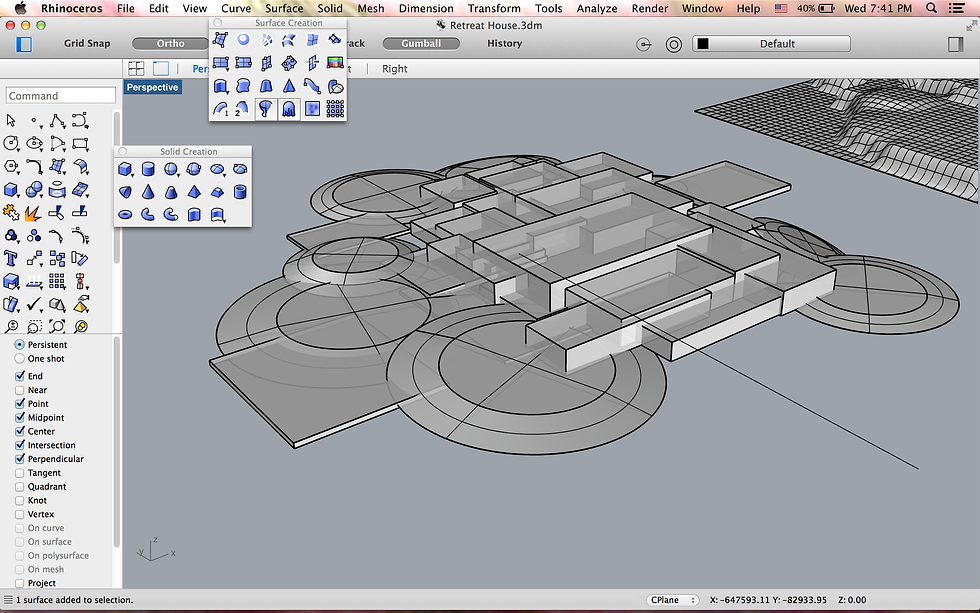

Various geometry shapes were used to make the contour
Drape a window of the geometry shapes to make contour
